PDF Mail Merge from CSV Files

What Is PDF Mail Merge from CSV?

PDF mail merge from CSV lets you use a comma-separated or tab-separated text file as the data source for generating personalized PDF documents. Each row in your CSV produces one filled-in PDF — invoices, certificates, labels, contracts, or any document type.

CSV is the universal export format — nearly every database, CRM, ERP, and spreadsheet application can export to CSV. If your data lives in Salesforce, HubSpot, Airtable, Notion, MySQL, or any system that has an “Export to CSV” button, you can merge it into PDFs with Mergram.

Prerequisites

• A PDF template — an invoice, certificate, contract, label, or any PDF you want to fill with data
• A CSV or TSV file — comma-separated, semicolon-separated, or tab-separated, with headers in the first row
• A free Mergram account — sign up at mergram.com/new

How to Mail Merge from CSV

Step 1 — Upload Your PDF Template

Open the Mergram editor and upload a PDF file from your computer. You can also import a Canva design directly. Your template defines the static content — logos, headings, borders — that stays the same across all generated documents.

Step 2 — Upload Your CSV File

In the Data Source tab, drag your .csv or .tsv file into the editor. Mergram auto-detects the delimiter and reads the file:

The first row becomes column headers. Each subsequent row is one record to merge. You don’t need to specify the delimiter — Mergram detects it automatically.

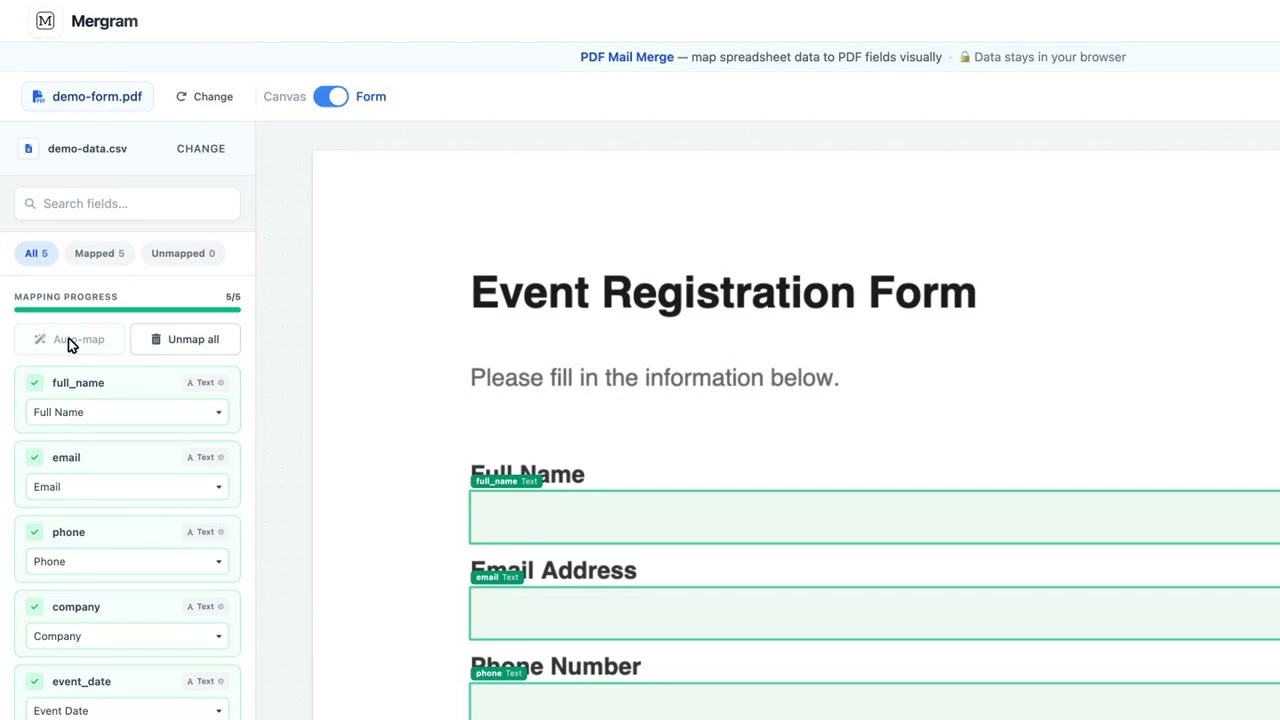

Step 3 — Place Data Fields

Drag column headers from the sidebar onto your PDF pages. Each column becomes a positioned field you can configure:

• Text — Names, addresses, amounts, dates, any textual value
• QR Codes — URLs, verification links, product identifiers
• Barcodes — Code 128, EAN-13, UPC-A, Code 39, ITF-14, Pharmacode
• Images — Photos, logos, signatures (matched by filename from Media Albums)

Position fields on any page, resize freely, and use snap-to-center guides for alignment.

Step 4 — Preview & Generate

Use the row selector to preview any row rendered in your browser — no server round-trip needed. When you’re satisfied:

• Individual PDFs — One file per row, packaged as ZIP download
• Combined PDF — All pages in a single document
• Email delivery — Each PDF sent as a personalized attachment via your SMTP server

Background workers handle up to 100,000 rows with progress tracking and pause/resume support.

CSV Format Details

Basic Structure

A CSV file for mail merge looks like this:

Name,Email,Amount,Due Date,Invoice Number
Alice Chen,alice@example.com,"$1,500.00",2025-02-15,INV-0042
Bob Martinez,bob@example.com,"$2,300.00",2025-02-15,INV-0043
Carla Müller,carla@example.com,"$980.00",2025-02-20,INV-0044

Rules:

• Row 1 — Column headers (become field names in the editor)
• Row 2+ — Data records (one row = one merged PDF)
• Quoted values — Fields containing commas must be wrapped in double quotes
• Line breaks in values — Must be wrapped in double quotes

Delimiter Auto-Detection

Mergram analyzes your file and detects the delimiter automatically:

1. Comma — Standard CSV, the most common format worldwide
2. Semicolon — Used in European locales where the comma is the decimal separator
3. Tab — TSV format, common in database exports and terminal tools

You don’t need to configure anything — just upload the file.

Encoding Support

Mergram handles two character encodings:

Common CSV Sources

CSV is the lingua franca of data exchange. Here are common sources for CSV data:

CSV Preparation Tips

Cleaning Your Data

Before uploading a CSV file, check these common issues:

1. Consistent headers — Ensure the first row has unique, descriptive column names
2. No blank rows at the top — The first row must be headers, with no empty rows above
3. Trim whitespace — Extra spaces in values can affect field rendering
4. Date formatting — Use a consistent date format across all rows (e.g., YYYY-MM-DD)
5. Quoted fields — Values containing commas must be wrapped in double quotes

Handling Large CSV Exports

For large datasets:

• Mergram processes up to 100,000 rows per job — split larger files if needed
• Browser-side preview uses a single row, so file size doesn’t affect preview speed
• Bulk generation runs on background workers — you don’t need to keep the browser tab open

Converting from Other Formats

If your data isn’t already in CSV format:

• Excel → Save As → CSV (Comma delimited)
• Google Sheets → File → Download → Comma Separated Values (.csv)
• JSON → Use a tool like jq or a spreadsheet application to flatten into tabular CSV
• XML → Most tools can convert XML exports to CSV
• API output → Use the REST API to send JSON directly instead of converting to CSV

Best Practices

1. Use UTF-8 encoding — Ensures all characters display correctly, especially for international data
2. Keep headers simple — Use First_Name or First Name rather than First Name (Primary Contact)
3. Validate with a spreadsheet app first — Open the CSV in Excel or Google Sheets to verify the data looks correct before uploading
4. Preview multiple rows — Check at least 2–3 rows in the browser preview to verify formatting
5. Save your template — After placing fields, save the template so you can re-merge with updated CSV data without re-placing fields
6. Use semicolons for European data — If your data uses commas as decimal separators, export with semicolons as the delimiter

Get Started

Export your data as CSV, upload it to Mergram along with a PDF template, and generate personalized documents in minutes. No format conversion needed — comma, semicolon, or tab, Mergram handles them all.

Try it free: mergram.com/new

Prefer a different data source? See PDF Mail Merge from Excel or PDF Mail Merge from Google Sheets.
